By Rhoda Miel
STAFF REPORTER
Published: October 28, 2013 10:08 am ET
Updated: October 28, 2013 10:12 am ET
Image By: Caroline Seidel

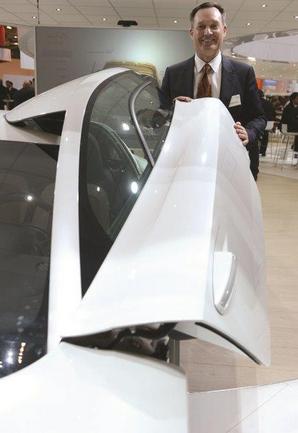

Stephen Shuler, Sabic marketing director for vehicle body systems, stands beside Volkswagen's XL1 high-efficiency hybrid car at K 2013.
DÜSSELDORF, GERMANY — Sabic Innovative Plastics has spent more than 10 years working to
convince the auto industry to use more polycarbonate as a glass replacement for car windows.
Its Exatec LLC unit developed glazing technology to protect the plastic and ensure PC will
meet safety and performance requirements. It has won some success in sunroof systems,
especially in Europe, but now is making its debut on side windows, appearing on Volkswagen
AG's XL1 high-efficiency hybrid car.
The XL1 was exhibited at K 2013, held Oct. 16-23 in Düsseldorf.
The hybrid uses plastics extensively, with carbon fiber used for its body and lithium-ion
battery pack providing support for the electric drive. It is going into limited production at
this point, with each one made at VW's Osnabrück, Germany, plant. The plug-in electric engine
is supported by a diesel hybrid engine, with the two systems capable of going 100 kilometers
on less than 1 liter of fuel.
The unconventional design has a streamlined shape to improve the car's aerodynamics. The
driver's and passenger's seats are slightly off-center from each other to allow for a
narrower car body.
The two-seat vehicle is the first vehicle to feature advanced plasma coating on two-component
injection molded PC windows, Sabic said. Volkswagen said the side windows are 33 percent
lighter than conventional glass, but the driver and passenger can still roll down the small
windows — making them the first PC roll-down, moving windows used in the auto industry. The
XL1 also uses Sabic's Lexan PC in the rear quarter windows.
Sabic has made a long-term commitment to developing PC as a real alternative for the auto
industry globally. Its Exatec facility in Wixom, Mich., has full-production prototyping
capabilities with molding and glazing operations.
"We're passionate about glazing in cars because of what it can do with polycarbonate in parts
integration," said Scott Fallon, general manager for automotive at Sabic.
The auto industry is now beginning to catch on, thanks to demands for improved fuel economy
in North America and reduced emissions in Europe.
"The challenges within the industry are all pointing things in our favor now," he said.
While the XL1 is a limited-production vehicle, it still is an important vehicle for
Volkswagen, capable of bringing together multiple technologies. It is an icon for the
carmaker, and Lexan and Exatec are a prominent part of it — right down to having the Exatec
logo on the side windows.
Exatec will produce the windows and ship them to Germany for assembly.
"The plasma-coated windows from Sabic are one of many distinguishing features on the XL1 that
help us lighten the vehicle to reduce energy consumption," said Ulrich Hackenberg, member of
the board for Volkswagen's passenger-car group.
In addition to the XL1, Sabic also is showcasing a concept for an all-thermoplastic liftgate,
which would come in at 30 percent lighter than a conventional tailgate. The concept would use
Stamax long-glass-fiber-reinforced polypropylene or Vertron long-glass-fiber-reinforced
polybutylene terephthalate for structural components, Noryl GTX for the outer layer and Lexan
PC with Exatec coating to replace the glass.
The total weight savings adds up to 12 kilograms (26½ pounds).
"The real benefit is in system integration," Fallon said. "We didn't just replace metal, we
showed what the whole system can do." |
